产品简介

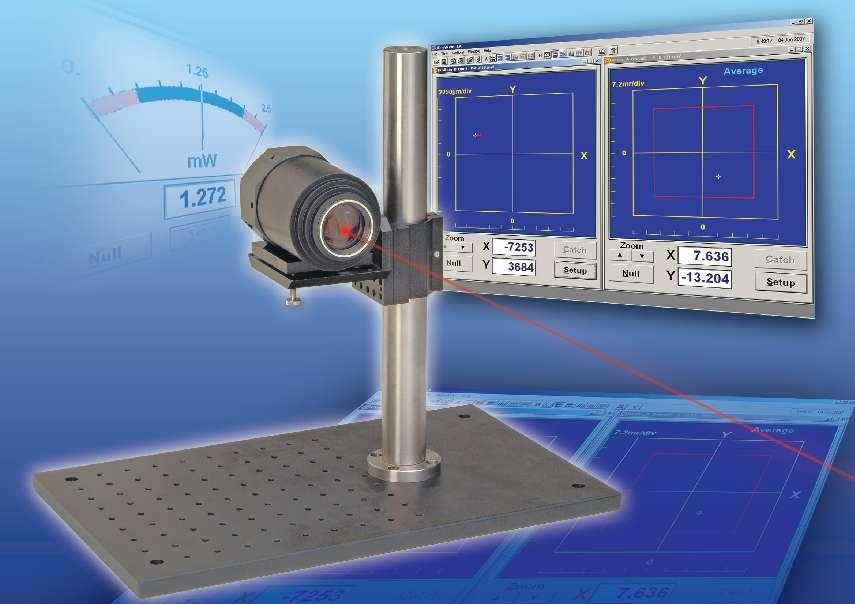

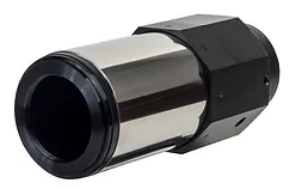

以色列 Duma Optronics AlignMeter LA 激光准直仪
大口径激光准直系统,该系统可同时测量光束相对于外壳的中心度、角度偏差以及绝对功率。该系统可测量连续波光束,并提供便携式、快速和精确的光束准直解决方案。可用光束尺寸可达22.5mm,角度测量范围为±2°,分辨率为±1秒。
产品参数
Product Parameter
探测器类型 | PSD Si |
测量光斑大小 | <22.5 mm |
位置测量范围 | 22.5 x 22.5 mm |
工作温度 | 0° - 35° C |
波长范围 | 350 - 1100 nm |
位置分辨率 | 优于 ±2 μm (取平均条件下) |
位置精确度 | ±50 μm |
角度测量范围 | ±2° |
角度分辨率 | ±1 sec |
功率测量范围 | 100 μW - 5 mW (无衰减片时) |
功率精确度 | ±5% |
交互方式 | USB 3.0 |

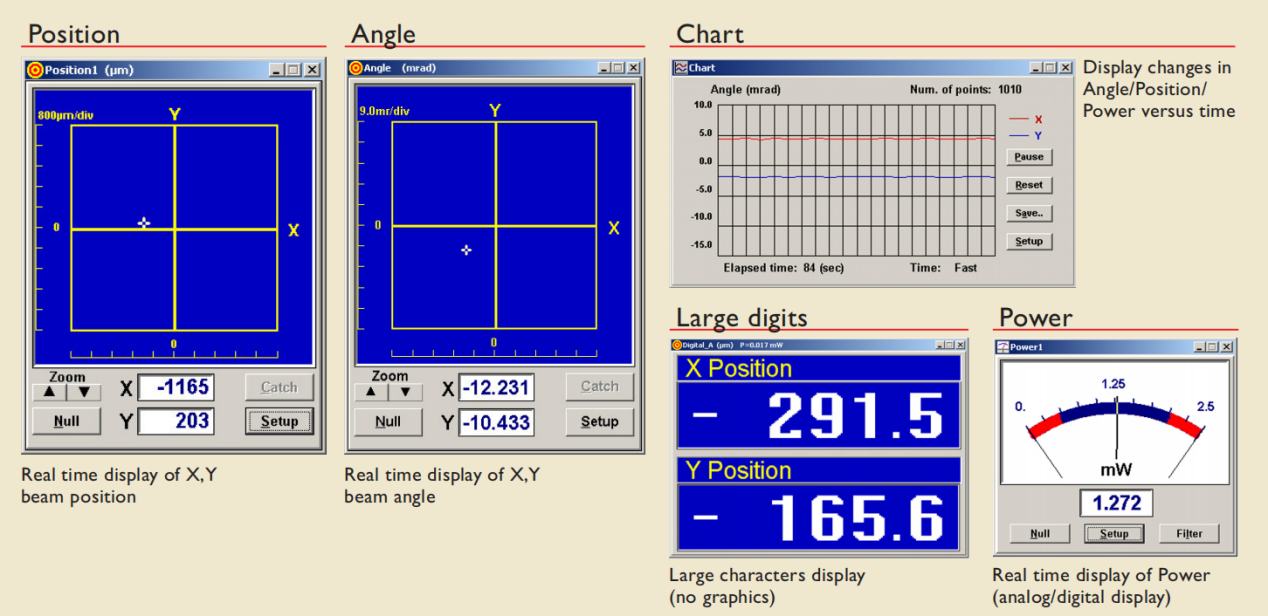

测量界面:
订货信息:
ALIGN-LA: A complete system including a measuring head with 3m long cable, a manifold box, USB2.0 cable, software on CD disk, carrying case.
其他可选配件
ND9: Optical filter M37X0.7, attenuation 1/8
