MeSI™ – MEASUREMENT STATION INTERFACE

SOFTWARE → MeSI™ – MEASUREMENT STATION INTERFACE

OVERVIEW

SCREENSHOTS

SPECIFICATION

SCREENSHOTS

MeSI™ v3.71 software screenshots. The software is available for Windows 64 bit and supports 4K resolution.

  • Gallery

1. DUT spectrum – Wavelength Spectrometry

2. Measurement analysis (Load/Save Mode)

3. Power measurement – Average Power

4. General Settings

5. Equipment Setup

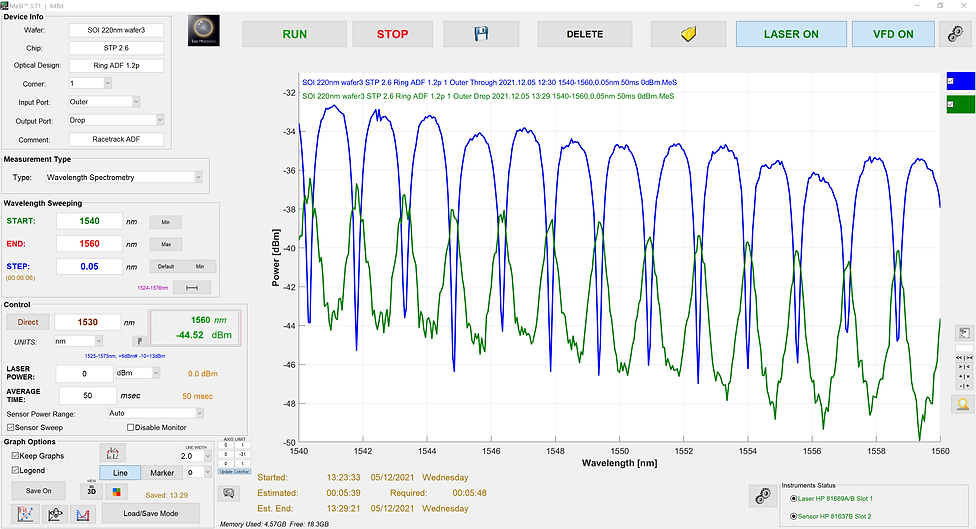

1. DUT spectrum – Wavelength Spectrometry. Agilent HP81689A, HP81637B, HP8163A.

MeSI - Screenshots 1.png

Measuring a Silicon Photonics racetrack-shaped ring resonator (Add Drop Filter) by scanning optical wavelengths at steps of 0.05nm.

The equipment in used is Agilent® tunable laser HP81689A, Agilent® photodetector HP81637B and Agilent® mainframe HP8163A.

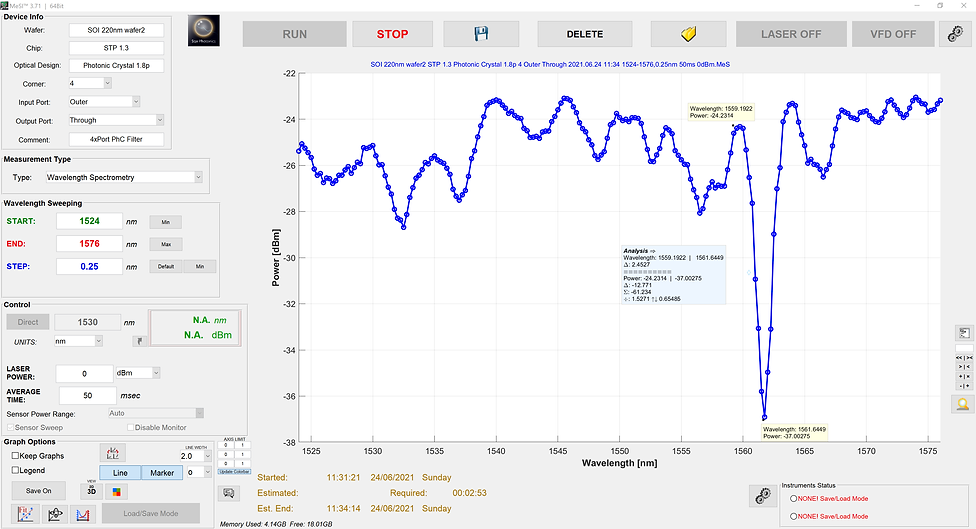

2. Measurement analysis (Load/Save Mode). No equipment connected.

MeSI - Screenshots 2.png

The throughput port measurement of a 4 ports Photonic Crystal filter is loaded for analysis. 12.7dB extinction ratio with FSR>50nm is observed.

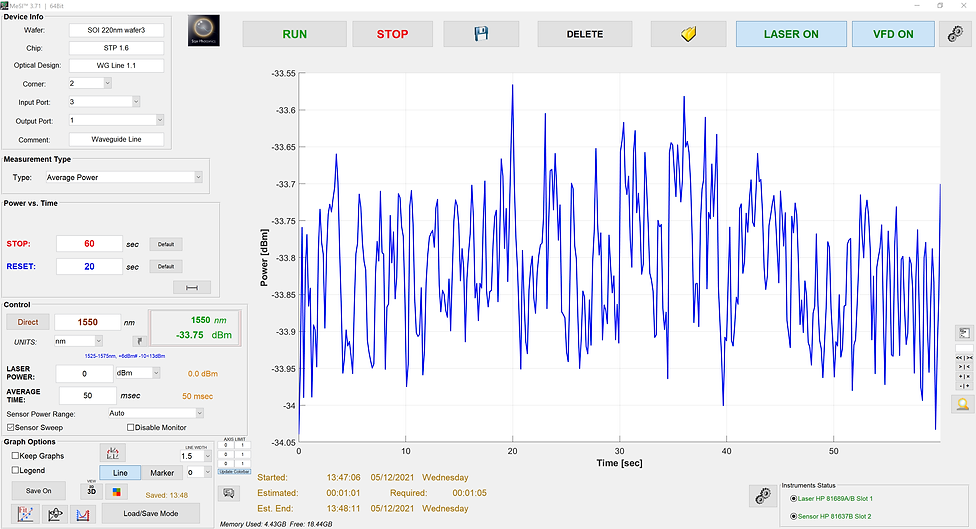

3. Power measurement – Average Power (stability test). Agilent HP81689A, HP81637B, HP8163A.

MeSI - Screenshots 3.png

Average power detection within 60 seconds is measured in the 1,550nm wavelength. Power fluctuations of about 0.4dB can be noticed.

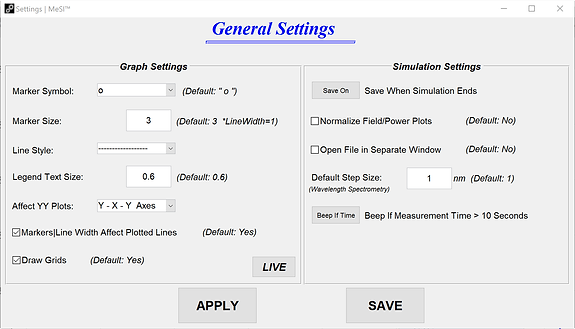

4. General Settings dialog box.

MeSI - Screenshots 4.png

Apply new setting to inspect the results.

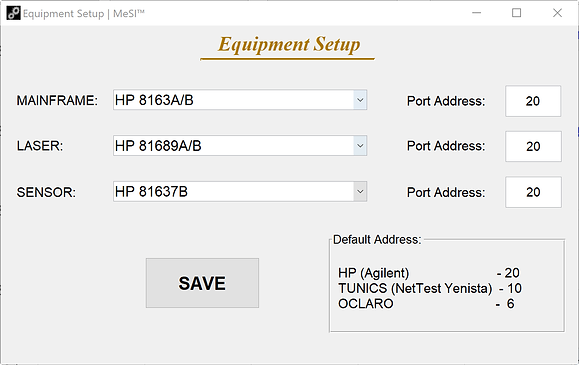

5. Equipment Setup dialog box.

MeSI - Screenshots 5.png

Setup and configure the equipment.
