Lord PICS™ v4.70 module current specification

Lord PICS™ v4.70 module current specification.

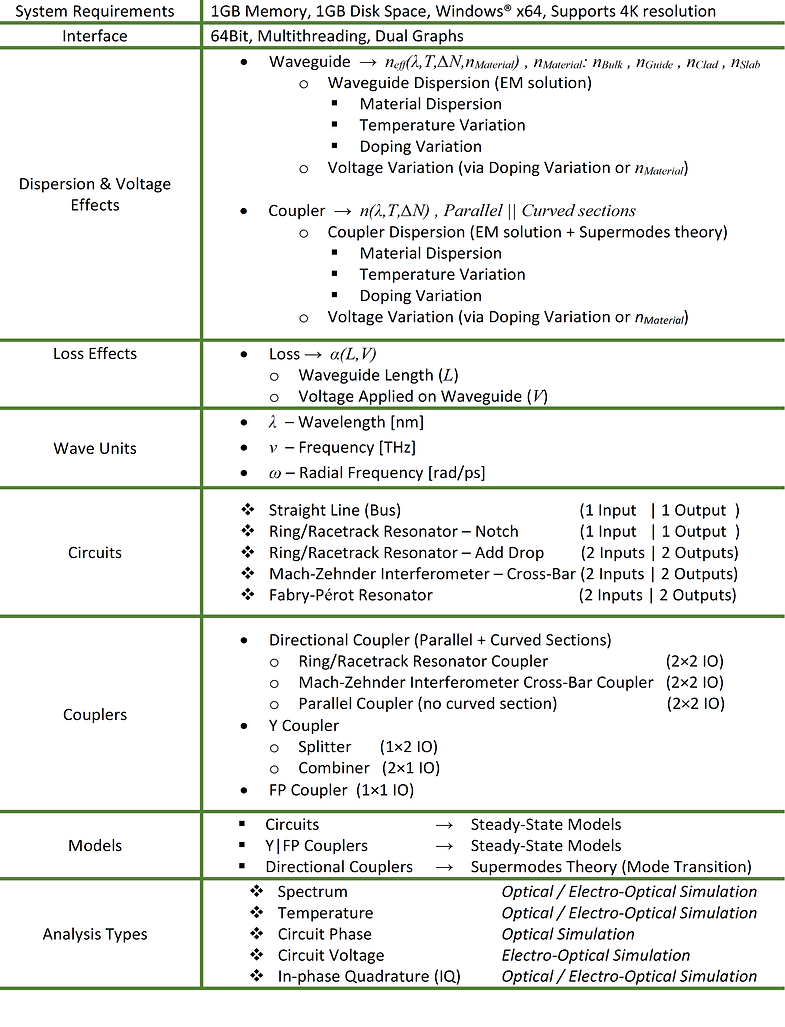

Lord PICS - Specification 1 v4.70.png

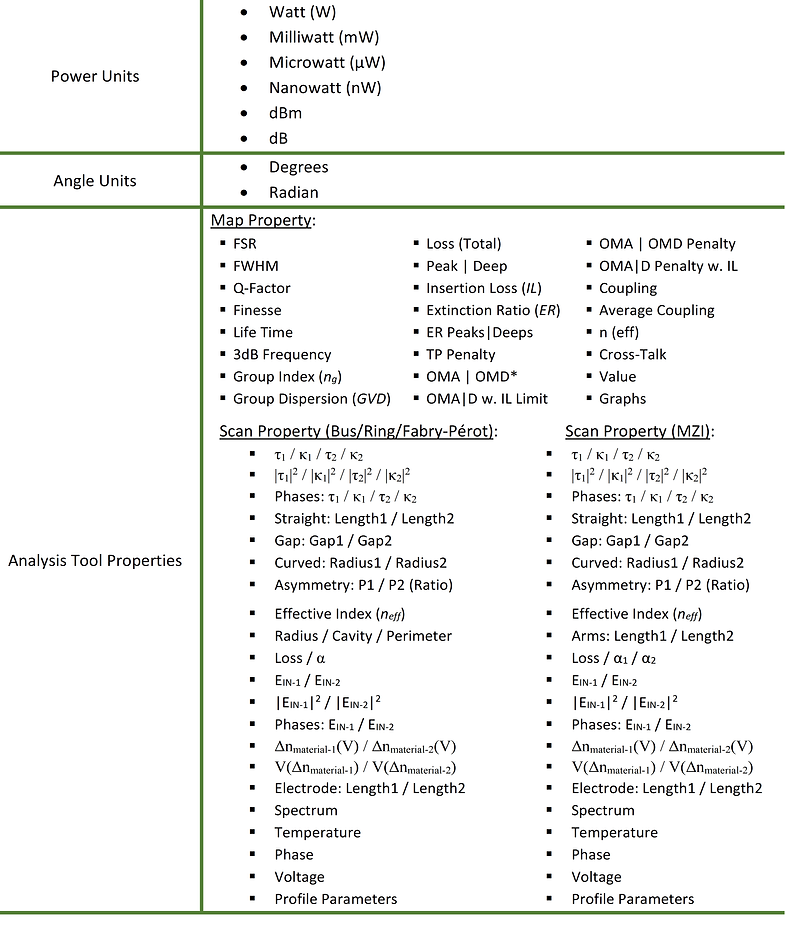

Lord PICS - Specification 2 v4.70.png

* OMA=Optical Modulation Amplitude, OMD=Optical Modulation Depth
